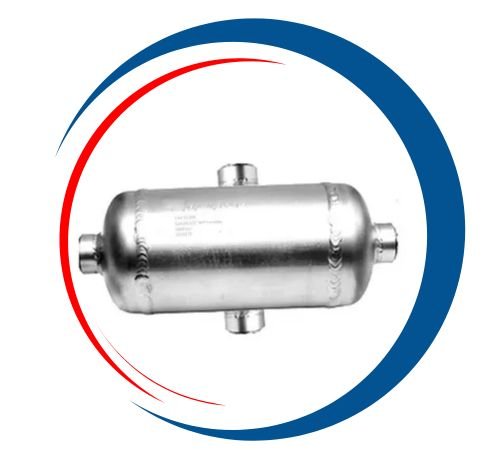

Hastelloy Condensate Pots

Home > Hastelloy > Hastelloy Condensate Pots

Benjamin Tubefittings, located in Abuja, Nigeria, is a trusted name when it comes to manufacturing and supplying top-notch instrumentation components, including their renowned Hastelloy Condensate Pots. These pots are expertly crafted to gather and store condensate along with any foreign particles from steam and fluid lines, ensuring that sensitive instruments like pressure gauges and transmitters are well protected. Made from high-quality Hastelloy alloys, these condensate pots boast impressive corrosion resistance, strength, and durability, even in harsh acidic or chloride-rich environments. Benjamin Tubefittings is committed to meeting international standards, delivering long-lasting, efficient, and safe solutions for various industries, including oil and gas, chemical processing, marine, and power generation.

C22 Hastelloy Type A Condensate Pot Manufacturer Abuja, UNS N06022 Type B Condensate Pots Manifolds Dealer Lagos, Hastelloy Type C Condensate Pot with Red Oxide Coated Supplier Ibadan, Hastelloy Type A Condensate Pot with Galvanized Plating Exporter In Kano, Hastelloy® Alloy Type B Condensate Pot with Zinc Plating Dealer In Port Harcourt, Hastelloy Condensate Pot Type C Supplier In Abuja, Nigeria.

Hastelloy Condensate Pots are primarily made up of nickel, molybdenum, and chromium, with added tungsten to boost their resistance to corrosion and oxidation. They showcase remarkable mechanical properties, such as high tensile and yield strength, along with resistance to pitting, crevice corrosion, and stress cracking. Thanks to precision manufacturing, these pots feature smooth internal surfaces that facilitate efficient condensate collection and discharge, while their sturdy construction allows them to endure high-pressure and high-temperature conditions. Their exceptional durability and chemical stability make them perfect for aggressive industrial settings that demand consistent performance and a long service life.

Hastelloy Instrumentation Manifolds Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Sizing Of Hastelloy Condensing Pot

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

Top Hastelloy Instrumentation Manifolds Manufacturing Company in Abuja

At Benjamin Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hastelloy Instrumentation Manifolds in Abuja, Nigeria. Our advanced manufacturing facilities, strategically positioned in the Nigeria, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Hastelloy Instrumentation Manifolds

Hastelloy® Alloy Type A Condensate Pot with Red Oxide Coated Price in Abuja, Hastelloy Type B Condensate Pot with Galvanized Plating Manufacturer Supplier in Lagos, Hastelloy Type A Condensate Pots with 2 Ports Manufacturer in Ibadan, Hastelloy Condensate Pot Type B Supplier Price in Kano, Hastelloy Type C Condensate Pots with 4 Ports Supplier And Manufacturer in Port Harcourt, Alloy C276 Type A Condensate Pots In Abuja, Nigeria.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Hastelloy Instrumentation Manifolds Supplier in Abuja, Nigeria

Benjamin Tube Fittings is a leading supplier and stockist of premium Hastelloy Instrumentation Manifolds in Abuja, Nigeria. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hastelloy Instrumentation Manifolds Uses

These Hastelloy Condensate Pots are widely utilized in instrumentation and process control systems to effectively trap condensate and prevent hot fluids or steam from coming into direct contact with measuring instruments. You’ll find them commonly used in refineries, chemical plants, marine applications, and power generation facilities. By helping to maintain system accuracy and protecting instruments from corrosion or damage, these pots ensure smooth operation even under extreme conditions. With their outstanding corrosion resistance, pressure tolerance, and long-term reliability, Hastelloy Condensate Pots from Benjamin Tubefittings promise efficient and safe operation across various demanding environments.
