Butt Weld End Ball Valve

Home > Butt Weld End Ball Valve

Benjamin Tubefittings, based in Abuja, Nigeria, is a well-respected manufacturer and supplier of top-notch Butt Weld End Ball Valves. These valves are expertly designed to ensure smooth, leak-proof flow control in high-pressure and high-temperature piping systems. Built for permanent welding into pipelines, they guarantee strong, reliable, and maintenance-free connections. At Benjamin Tubefittings, Butt Weld End Ball Valves are crafted using cutting-edge technology and high-quality materials to meet international standards. Renowned for their durability, resistance to corrosion, and precise operation, these valves are perfect for demanding applications in the oil and gas, petrochemical, power generation, and water treatment sectors.

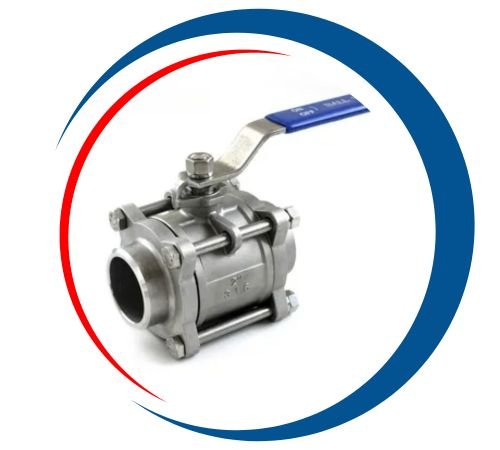

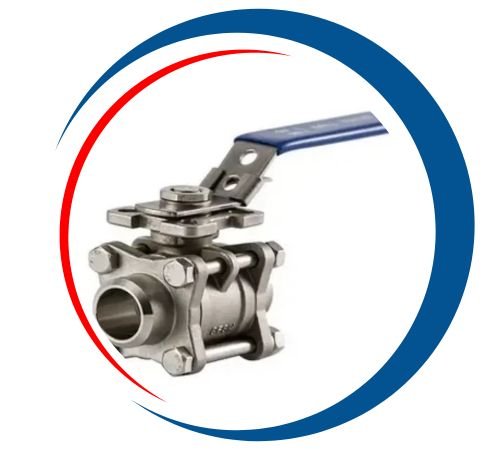

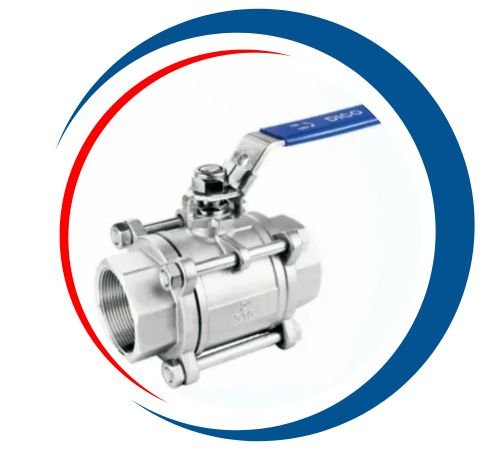

Butt Weld End Ball Valve Supplier in Abuja, Socket Weld Valve End Price List in Lagos, Butt Weld Valve End Manufacturer in Ibadan, CF8M Butt Weld End Ball Valve in Kano, PTFE Butt Weld End Ball Valve Exporter in Lagos, Socket Weld End Valve Manufacturer in Port Harcourt, CF8M Butt Weld End Ball Valve In Abuja, Nigeria.

Typically, Butt Weld End Ball Valves from Benjamin Tubefittings are constructed from stainless steel, carbon steel, or high-grade alloys, all chosen for their mechanical strength and resistance to corrosion. Their impressive mechanical properties include high tensile and yield strength, excellent pressure and temperature tolerance, and resistance to wear and deformation. The precision-engineered ball and sealing mechanism ensure smooth operation, tight shutoff, and a long service life. These robust features make the valves incredibly reliable for critical industrial systems that require durability and performance in extreme conditions.

Specification of Butt Weld End Ball Valve

Material	CF8M Stainless Steel
Seat	15% glass reinforced RTFE
Component Material	Stem packing: 15% glass reinforced RTFE
Size	½” To 3″
Port	Full
Length	7.3″
Pressure Rating	800 PSI WOG at 65°F (18°C)
Maximum Temperature	400°F (204°C)
Flow	1-Way

Top Butt Weld End Ball Valve Manufacturing Company in Abuja

At Benjamin Tube Fittings, we are the largest supplier, manufacturer, and exporter of Butt Weld End Ball Valve in Abuja, Nigeria. Our advanced manufacturing facilities, strategically positioned in the Nigeria, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands

Materials of Butt Weld End Ball Valve

No.	Name	Material	QYT
1	Body	CF8M	1
2	Cap	CF8M	2
3	Ball	CF8M	1
4	Stem	316	1
5	Seat	PTFE+3%.GF	2
6	Thrust.washer	PTFE+15%.Graphite	1
7	Gasket	PTFE+15%.Graphite	2
8	Bolt	304	4
9	Nut	304	4
10	Spring.washer	304	4
11	O.ring	Viton	1
12	Stem.packing	PTFE	1
13	Gland	304	1
14	Butterfly.washer	301	2
15	Lock.wahser	304	1
16	Square.washer	304	1
17	Handle	304	1
18	Flat.ring	304	1
19	Nut	304	2
20	Handle.sleeve	Rubber	1
21	Bolt	304	1
22	Nut	304	1
23	Spring.washer	304	1
24	Locker	304	1

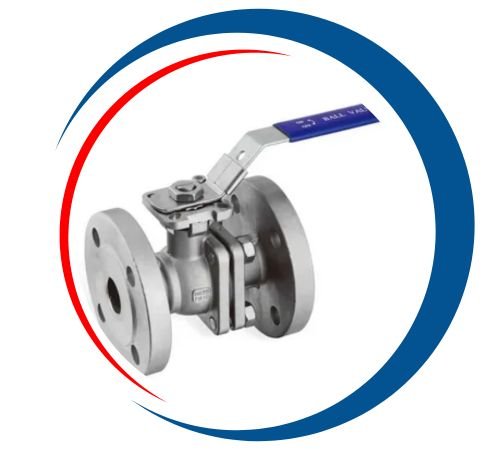

Types of Butt Weld End Ball Valve

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Butt Weld End Ball Valve Supplier in Abuja, Nigeria

Benjamin Tube Fittings is a leading supplier and Stockist of premium Butt Weld End Ball Valve in Abuja, Nigeria. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Butt Weld End Ball Valve Uses

Butt Weld End Ball Valves are commonly utilized in industries where secure, welded connections are essential for preventing leaks and maintaining system integrity. They are particularly suited for oil and gas pipelines, refineries, chemical plants, and power generation systems. The welded ends create a permanent connection, significantly reducing the risk of leaks and minimizing maintenance needs. By providing precise flow control, smooth operation, and long-lasting reliability, Butt Weld End Ball Valves from Benjamin Tubefittings enhance safety, efficiency, and performance in complex industrial piping networks.
