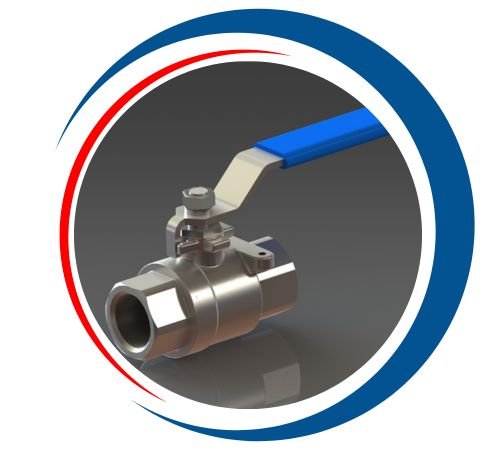

Incoloy 800 Ball Valve

Home > Incoloy > Incoloy 800 Ball Valve

Benjamin Tubefittings is a reputable manufacturer and supplier located in Abuja, Nigeria, focusing on top-notch Incoloy 800 Ball Valves. Renowned for its engineering excellence and precision manufacturing, the company offers durable, high-performance valves that meet the rigorous standards of various industries. With a strong commitment to innovation, quality assurance, and customer satisfaction, Benjamin Tubefittings delivers dependable flow control solutions for sectors like petrochemical, power generation, oil and gas, and marine applications. Their Incoloy 800 Ball Valves are specifically designed to endure extreme temperatures, corrosion, and pressure, ensuring reliable performance and a long lifespan even in tough conditions.

Incoloy Alloy 800 2-Way Ball Valve Supplier in Abuja, Incoloy 800 Ball Valves Price List in Lagos, Incoloy 800 3-way Ball Valves Manufacturer in Ibadan, Incoloy 800 Ball Valves In Kano, Incoloy 800 Instrumentation Ball Valves, Incoloy 800 One-Piece Ball Valves Exporter in Lagos, Incoloy 800 Instrument Ball Valve Manufacturer in Port Harcourt, Incoloy 800 Ball Valve in Abuja, Nigeria.

Incoloy 800 Ball Valve Specifications

The Incoloy 800 Ball Valve is crafted from a nickel-iron-chromium alloy that provides outstanding resistance to oxidation, carburization, and high-temperature corrosion. Typically, its composition includes nickel (30–35%), chromium (19–23%), and iron (the balance), along with small amounts of carbon, aluminum, and titanium to boost strength and stability. On the mechanical side, Incoloy 800 boasts a tensile strength of about 550 MPa, a yield strength of around 200 MPa, and impressive creep-rupture properties. These characteristics make it perfect for high-temperature, high-stress environments where maintaining mechanical integrity and resisting corrosion are essential.

SPECIFICATION	ASTM A494 / ASME SA494 API 602, ASME B16.34, SME B16.5, ASME B16.25, ASME B1.20.1, ASME B16.11, ASME B16.10, BS 5352, DIN3352
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE

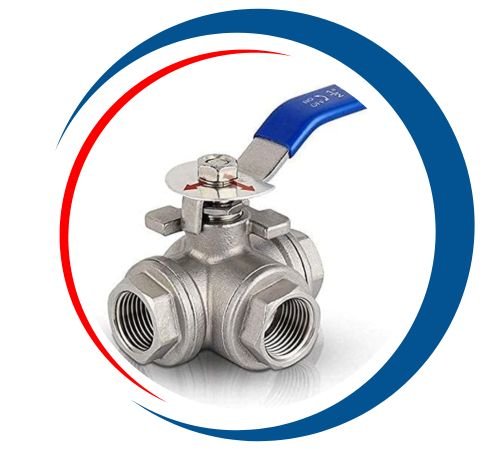

FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Incoloy 800 Ball Valve Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60ᴬ	0.15 – 0.60ᴬ

Incoloy 800 Ball Valve Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Types of Incoloy 800 Ball Valve

IIncoloy 800 Ball Valve Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

Incoloy 800 Trunnion Ball Valve, Incoloy 800 Flanged Ball Valve, Incoloy Alloy 800 Swing Out Ball Valves Price in Abuja, UNS N08800 Instrumentation Ball Valve Supplier in Lagos, Incoloy 800 Lined Ball Valves Manufacturer in Ibadan, Incoloy 800 High Pressure Ball Valves Price in Kano, Incoloy 800 Three-piece Ball Valves Supplier And Manufacturer in Port Harcourt, Incoloy 800 Flanged Ball Valve In Abuja, Nigeria.

Largest Manufacturer and Supplier of Incoloy 800 Ball Valve in Abuja, Nigeria

At Benjamin Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy 800 Ball Valve in Abuja, Nigeria. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Nigeria, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Incoloy 800 Ball Valve Uses

The Incoloy 800 Ball Valve from Benjamin Tubefittings is a go-to choice in industries that require top-notch heat and corrosion resistance. It’s perfect for chemical and petrochemical processing, power generation, and heat treatment systems. You’ll find these valves in steam plants, furnace equipment, hydrocarbon processing, and nuclear power systems, where high temperatures and harsh media are the norm. Incoloy 800 Ball Valves provide dependable shut-off and control for pipelines that transport corrosive gases and liquids. Their robust design, resistance to scaling, and outstanding performance under thermal stress make them a favorite for long-lasting industrial applications.
